If you need a cost-effective and useful solution for upkeep, the Harbor Freight O Ring Kit is a great pick. Because it holds a diverse collection of sizes, it is well-suited for do-it-yourselfers and mechanics alike. Users across the U.S. can replace seals swiftly without multiple store visits.
Browse Products For O Ring Kit
This robust seal kit helps maintain project schedules, aiding car components, pipe work, and small machinery fixes. It is ideal for having emergency spares on hand and performing routine checks, thereby lowering downtime.
The kit boasts economical versatility but pay attention to material limits. Particular rings have a tendency to bloat upon contact with gasoline. You must correctly align the material of the ring with the fluid it will be exposed to.
Elastomers like Viton thrive in heat but could cause leaks in cold weather. For enhanced chemical resistance or extended service life, you should consider purchasing higher-specification seals. In summary, this assortment box skillfully blends low cost with a wide variety, serving numerous fixing requirements.
Crucial Summaries
- The Harbor Freight assortment includes a vast range of sizes for rapid repairs on the spot.
- Utilize this seal collection to reduce delays in car, pipe, and machinery tasks.
- Material compatibility matters: some Harbor Freight replacement o rings can swell with fuel exposure.
- Materials such as Viton behave uniquely across climates; low temperatures can compromise flexibility.
- When dealing with crucial systems, add top-tier seals or branded items to your collection.
Insight Into O-Rings And Choosing Materials For Resilient Seals
These rings are crucial, torus-formed elastic barriers. They prevent fluid and gas leaks in both static and dynamic joints. Located in car gas and radiator setups, hydraulic lifts, and other gear, these gaskets are key. The right material selection significantly increases their lifespan and reliability in operation.
Definition Of An O-ring And Frequent Applications In Upkeep
An O-ring establishes a secure seal to halt leaking. Repair professionals trust seal assortment kits for crisis maintenance. Owning a complete O-ring set lowers delays and cuts down service time remarkably.
Typical Materials: Buna-N (NBR), Viton (FKM), Silicone, EPDM
NBR, also known as Buna-N, is a top choice for resisting oils and standard fuels at moderate temps. This is a frequent selection in sets from retailers such as Harbor Freight. In contrast, Viton, or FKM, succeeds in areas with extreme heat and tough chemicals. Silicone is superior in freezing surroundings due to its great pliability and resistance to permanent deformation. At the same time, EPDM is notable for fighting water, vapor, and polar solvents, but it fails with oil-based liquids.
Material Performance: Chemical Resistance, Temperature Range, And Swelling
For dealing with hydrocarbons and strong chemicals, Viton outperforms Buna-N as well as EPDM. Still, EPDM performs better than Viton or Buna-N when it comes to hot water and steam. Viton and Silicone are designed for extreme temperatures: Viton withstands high heat, while Silicone remains flexible in cold conditions.
On-The-Job Concerns: Fuel Interaction Might Cause Swelling In Some Materials
Exposure to gasoline or solvents can cause certain elastomers to swell. Trials using rings from an assortment kit uncovered this; a unit exposed to fuel swelled up within a day, but another kept its shape. This underscores the need to never presume all seals work in fuel setups. You must consider chemical exposure and temperature when choosing materials. Viton might get stiff in colder zones, which increases the probability of leaks. Conversely, in warmer climates, it often excels. For industrial applications, selecting an industrial o ring kit with well-defined material specifications is crucial for choosing the right seal for any situation.

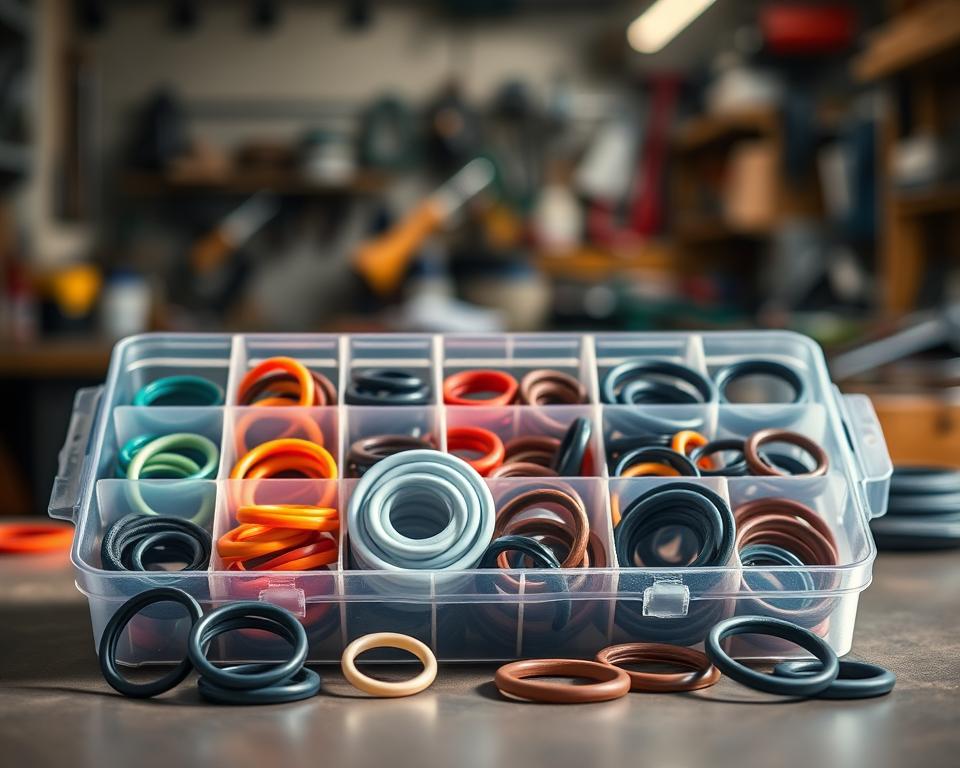

Inside The Harbor Freight Kit: Inclusions And Common Size Mixtures
Most Harbor Freight O-ring kits come with a broad selection of sizes. These kits are designed for quick repairs and workshop use. Each kit contains a range of standard inner diameters and cross-section thicknesses.
Common Set Inclusions
Many sets boast a broad scope of seals, numbering from dozens to hundreds. Dimensions span from a tiny 3/32 inch up to 2 inches or the metric equivalents. The cross-sections are often based on AS568 standards, including popular cord diameters.
The kits are smartly packaged, with common sizes having multiple spares. The container is usually a compartment tray or marked baggies. However, some economy packs might lack detailed material specs. You must check the elastomer type to ensure chemical compatibility.
Interpreting A Size Chart And Selecting The Correct Gasket
Size grids are essential, listing the internal diameter (ID) and the cross-section (CS). The AS568 standard is the norm for the U.S. Conversely, metric tables gauge both measurements in millimeters.
When replacing a piece, sizing the old seal with calipers is ideal. If the parts catalog displays an AS568 code, pair it correctly. Guaranteeing the right size is central to stopping leaks and deterioration.
Best Dimensions For Everyday Repairs
Vehicle repairs typically demand small to medium internal diameters and thin cross-sections. Examples include carburetors, fuel line fittings, and hose couplers.
For pipe work, larger internal diameters and heavier cross-sections are preferred. Metric measurements are standard in imported hardware.
Hydraulic and industrial applications call for larger cross-sections and specific material standards. A comprehensive rubber seal kit with varied dimensions and compounds is vital for managing various liquids and heats.
| Application | Common ID Range | Standard Thickness | Recommended Kit Feature |
|---|---|---|---|
| Car (gas, oil, connectors) | 1/8 in to 1 in | 1/16″ to 1/8″ | High count of small sizes, NBR/FKM availability |
| Plumbing (spigots, gates) | 3/8 in to 2 in | 1/8 in to 3/16 in | Metric dimensions, high volume, EPDM options |
| Commercial / Hydraulics | 1/4 in to over 2 in | 1/8″ to 1/4″+ | Fat cross-sections, composition specs, secure trays |
| General workshop | Mixed | 1/16 in to 3/16 in | Well-rounded set, tagged dividers |
Having an organized o ring assortment kit is crucial. It speeds up repairs and reduces downtime. A clearly marked kit guarantees you are ready with standard dimensions and unique seals for different requirements.
Picking The Correct Seal Assortment For Your Project
Beginning with the gasket’s surroundings is key when selecting a set. In cold climates, like New Jersey winters, certain elastomers become brittle. This fragility impacts jacks, pumps, and valves used outdoors.
Aligning composition with surroundings
Viton (FKM) stands out for chemical and thermal resistance, though it gets stiff in low temps. It is not suitable for devices needing flexibility in winter. Choose other compounds if the gasket faces regular cold startups or freeze-thaw loops.
Situations where Silicone or EPDM are better
Silicone retains flexibility even at extremely low degrees, rendering it great for winter use. EPDM, which fights weathering and vapor, fits water, HVAC, and exterior uses nicely. But, it should never be used with petroleum fluids.
Industrial o ring kit needs
In heavy-duty or critical systems, material certifications and performance data are key. A proper industrial O-ring kit features specific tech specs. Standard kits may not endure high compression or aggressive substances.
Features of a top-tier O-ring kit
Good sets boast transparent packing with precise size tags and distinct sections. They enumerate material properties, indicating their performance limits. Brands including Parker, SKF, and James Walker give essential data that confirms the quality of the kit.
Pairing a Harbor Freight economy kit with a specified one is wise for important repairs. For numerous DIY tasks, the perfect O-ring set blends clear tags, proven materials, and a variety of dimensions.
Handy Tips For Harbor Freight O-Ring Kits And Changing Seals
Look over the old parts before installing from a new sealing ring assortment. Check for signs of wear including flattening, cracking, hardening, or swelling caused by chemicals. A tactile review can identify rings that have become rigid or compressed.
Pick replacement parts based on the observed wear. For simple fixes, harbor freight’s o rings are adequate for many home repairs. For more strenuous applications, opt for a more durable O-ring set that meets the material requirements.
Checking and choosing
Discard rings if they show visible damage, are distorted, or have suffered chemical degradation. Ensure the replacement material is suited for the anticipated fluids and temperatures. If fuel exposure caused the swelling, opt for an o-ring that’s resistant to hydrocarbons.
Setup tips
Pick a grease that matches the O-ring and the system liquid. Use silicone grease for silicone rings, and avoid petroleum-based lubricants if there are plastics involved.
Put on the seal without kinking or pinching, which might result in seepage. Expand smaller seals only according to directions. Use appropriate tools or a smooth mandrel for installation to avoid damage. Ensure the groove size and seal cross-section are a match.
Storage and longevity
Store o-rings in cool, dark, and dry conditions, far from ozone generating equipment and sunlight. Preferably, keep them in their original compartments or sealed bags to prevent contamination and distortion.
Avoid placing heavy things on the kits because it can misshape the rings, impacting sealing performance. Rotate your stock by using older seals first to maintain a usable inventory.
Buying locations and trusted vendors
A simple seal set from a store might work for standard, cheap fixes. For projects that require detailed material specifications, select suppliers that offer comprehensive data sheets and traceable specifications.
Installation Parts Supply.com stands out for those needing certified or high-grade replacement parts. They provide extensive material specifications for those who need durable O-ring sets or specific rubber O-ring characteristics beyond standard offerings.
Final Thoughts
The Harbor Freight O Ring Kit serves as an affordable and accessible source for seal repairs. It contains a vast array of sizes and kinds, suitable for crisis and standard service. This flexibility guarantees you are ready for surprise repairs.
Choosing the right material is critical. Options include Buna-N, Viton, silicone, and EPDM. Each responds uniquely to factors like gas or deep freeze. In severe or challenging areas, pick a top-quality seal kit that states its materials for sure performance.
The harbor freight kit is ideal for temporary repairs. Having calipers within reach insures a proper match. For work requiring permanent fixes, go to trusted sources such as Installation Parts Supply.com. Investing in a top-tier O-ring kit is a wise choice for critical applications.
Always measure old seals and check material compatibility before replacement. Organizing your o ring kit reduces repair times. Yet, for cases with high pressure or heat, think about industrial-class O-rings for better safety and life.
