Compression fittings deliver a reliable method to couple copper pipes, eliminating the need for welding or soldering. Both seasoned plumbers and home repairers rely on these connectors for swift repairs and installations. A typical assembly contains a fitting body, a compression ring or ferrule, and a compression nut. As the nut is tightened, it presses the ferrule and creates a tight seal around the tube.

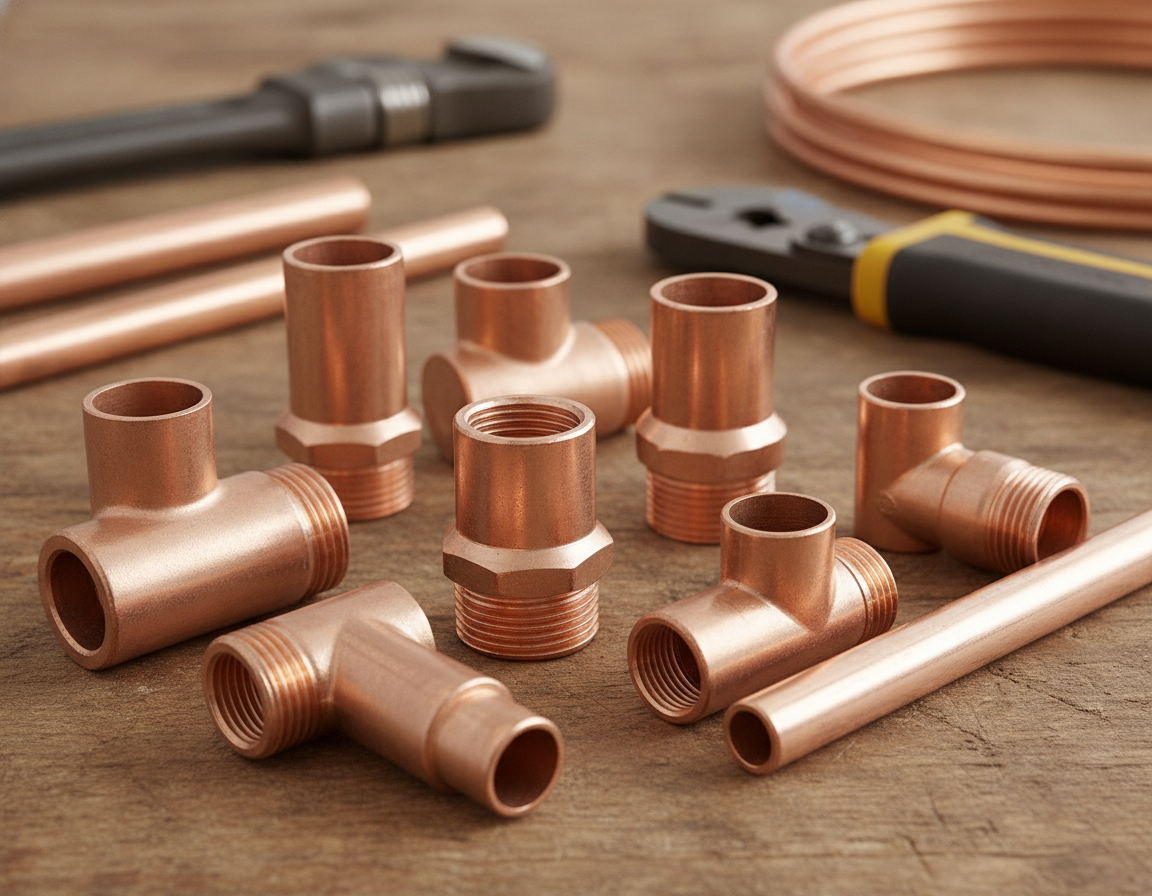

1/2 Tee Brass
To support a successful installation, follow a few important best practices. Begin with square cuts and remove burrs from the tube end. Next, check the end for any damage. After assembly, hand-tighten the nut before using a wrench for final tightening. It is essential to use two wrenches to avoid the pipe from twisting. Avoid overtightening, and never reuse a ferrule that has already been compressed if you want a dependable, leak-free joint.
In many jobs, compression fittings are chosen instead of soldered connections. They avoid open flame work and may be reusable in certain low-stress situations. One major benefit is that they can be installed more easily in confined or awkward spaces. Yet, they are more prominent and may not be suitable for high-stress areas or where inspection is difficult. It is important to use matching components and follow the manufacturer’s torque or turn specifications for optimal performance.
- Compression fittings couple copper tubing without solder or flame.
- The primary parts are the fitting body, ferrule or olive, and compression nut.
- Prepare tubing with square cuts and deburring for reliable seals.
- Use two wrenches, tighten carefully, and avoid overtightening to reduce leaks.
- Select brass or other compatible materials and follow the manufacturer’s instructions.
What Are Compression Fittings And How They Work
A compression fitting connects tubing without requiring solder, flame, or heat. They rely on a threaded connection. As it tightens, the connection presses a ring against the pipe and makes a seal. They are especially useful in confined areas and field repairs where a fast, dependable connection is needed.
Core Components
The core components are the fitting body, the ferrule, and the compression nut. The fitting body holds both the seating area and the threads. The ferrule, also called an olive, is positioned between the compression nut and the pipe. The compression nut threads onto the body to drive the ferrule forward.
Sealing Principle
Sealing happens by radial compression. As the compression nut is secured, the ferrule moves axially into the tapered bore of the body. This motion causes the ferrule to deform slightly and press against the tubing outer diameter.
The result is a line-contact seal that grips the tube and resists leaks. Ferrule design and material directly affect the seal’s performance under pressure and temperature changes.
Names And Variations Used Across Trades
Different trades use separate terms for the same idea. In plumbing supply and HVAC catalogs, terms such as compression joint, compression couplings, and compression nut are common. Instrumentation suppliers may list compression joints and compression fittings plumbing next to flare fittings, push-fit connectors, and other mechanical options.
| Term | Usual Application | Main Feature |
|---|---|---|
| Compression fitting nut | Domestic plumbing and gas runs | Threaded tightening to compress ferrule |
| Compression ring | HVAC, refrigeration, instrumentation | Deforms to seal and grip tubing |
| Compression connection | Quick field connections | No-solder assembly, reusable in many cases |
| Compression couplings | Extending or joining tubing runs | Ferrules seal both sides of a straight coupling |
| Plumbing compression fittings | General plumbing installations | Broad size and material availability |
Copper Tube Compression Fitting Guide
Material selection is important to compression-joint performance. It affects performance, durability, and the risk of corrosion. Copper fittings are often a good match for copper tubing. Their similar thermal expansion characteristics help maintain consistent metal contact.
Brass compression fittings, on the other hand, bring ductility. That ductility helps the fitting form a reliable seal without unnecessarily damaging the tube.
Stainless steel compression fittings are well suited for high-pressure or high-temperature systems. They also handle many aggressive fluids. Plastic compression fittings may be suitable for low-pressure household water lines. They avoid metal-to-metal contact, which can cause dissimilar-metal issues.
Materials should be matched to the job, pressure rating, temperature, and fluid type. For refrigeration and some plumbing, copper or brass parts are preferred. These materials help reduce mixed-metal stress. When high mechanical strength is required, stainless steel is often the better choice. Just remember, its harder ferrules can deform soft tubing if not sized correctly.
With copper tubing, avoid pairing the line directly with carbon steel or other incompatible metals. Galvanic corrosion can significantly accelerate deterioration at the junction. This cuts down the service life. If mixed metals are unavoidable, use dielectric unions, insulating sleeves, or choose compatible materials to limit electrical contact.
Before assembling, examine the tubing’s finish and wall rigidity. Good surface quality allows the ferrule to bite evenly and create a lasting seal. Always follow the manufacturer’s guidance for material compatibility. Following that guidance helps reduce leaks and extend joint life in real-world service.
Copper Tubing Compression Tee Sizes And Types
Choosing the right compression tee is important, influenced by flow needs, space constraints, and tubing sizes. These fittings are essential in plumbing, refrigeration, and instrumentation. A proper match between ferrule geometry and body taper is essential for leak prevention.
Compression Tee Variants For Tight Spaces
Straight tees allow flow through three aligned ports. Branch tees send flow into a side line without sharp turns. Compact tees fit into tight spaces where standard tees won’t. They support common sizes like the Compression Tee 1/2 for residential lines.
Common Compression Tee Sizes And Cross-Fit Choices
Installers commonly choose parts by tube OD or nominal size labels. The 1/4 Compression T Fitting and 1/2 Compression T Fitting are common. For small-diameter tube runs, the 1 4 Tee is often used. For larger branches, the 1/2 Inch Compression Fitting and 1/2 OD Compression Fitting are common. Cross-fit options such as 1/2 X3/8 and 3/8 X 1/2 Compression Fitting make it possible to mix sizes when required.
Mixed-Size Tees And Adapter Choices
Combination tees like the 1/2 X 1/2 X 3/8 Tee are used for size transitions. A 1/2 X3/8 adapter steps a 1/2 line down to a 3/8 branch. The 1 2 To 1 4 Compression Fitting provides a compact step-down for sensors or instrumentation taps.
Choosing Brass Tee And T Joint Fittings
Brass is the commonly chosen material for copper tubing connections due to its corrosion resistance and thermal expansion compatibility. Look for T Brass Fitting options for durable joints. The 1/2 Brass Tee and 1/2 Tee Brass are frequent for mains and branches. Ensure thread pitch and ferrule fit before mixing brands for a proper seal.
| Fitting Style | Common Use | Common Size Labels | Material Guidance |
|---|---|---|---|
| Straight Tee | Main run with branch inline | 1 4 Tee and Compression Tee 1/2 | Brass preferred for copper tubing |
| Branch Tee | Side branch off the main line | 1/2 Compression T Fitting, 1/4 Compression T Fitting | Match ferrules with fitting bodies |
| Tight-Space Tee | Confined locations and wall spaces | Compression Tee 1/2, 1/2 Inch Compression Fitting | Short body length, same sealing principle |
| Reducing Tee | Size transitions and instrumentation | 1/2 X3/8, 1/2 X 1/2 X 3/8 Tee, or 3/8 X 1/2 Compression Fitting | Adapters available: 1 2 To 1 4 Compression Fitting |
| Brass Tee Joint | Durable copper-compatible branches | T Brass Fitting, 1/2 Brass Tee | Matches copper; check pitch and taper |
Compression Fittings Vs Soldering And Other Joining Methods
The best joining method depends on the job conditions, code requirements, and fitting capability. Compression fittings are useful for tight spaces and areas near flammable materials, as they don’t require flame. Soldering, on the other hand, is better for making a lasting bond in visible, permanent installations.
Benefits For Fast Installs And Confined Work
No-flame fittings are useful for emergency repairs and retrofitting, as they eliminate the need for hot work permits or torches. They only require basic hand tools, making them a go-to for fast fixes. Reusing these fittings is feasible in systems with low stress, which is beneficial for testing or replacing sections.
Durability Limits And Fitting Profile Issues
Compared with soldered joints, compression fittings are bulkier. Ferrules can make it difficult to remove fittings, limiting their reusability. In systems with vibration or pulsation, compression joints may loosen over time, so soldered or brazed connections may be better.
Application Decision Guide
For plumbing repairs in tight spaces, compression fittings are useful when a no-flame connection is needed. Where neat appearance and low profile matter, soldering may be the better option.
In some gas-line work, compression fittings may be used for short runs. Always verify local code requirements and use approved materials. Inspect joints regularly so safety is maintained.
For HVAC and refrigeration, select copper fittings rated and designed for refrigerants. Where thermal cycling is heavy, brazed or flare joints may outlast compression fittings. Compression fittings such as a Compression Tee Fitting or T Compression Fitting can suit service taps, testing points, and temporary connections.
For instrumentation, choose fittings that can deliver leak-tight performance in high-pressure or high-purity lines. Stainless-steel compression options are effective, but confirm they meet pressure and media ratings before installation.
| Comparison Factor | Compression Joint | Solder/Braze |
|---|---|---|
| Tooling | Basic wrenches and few tools | Torch, flux, solder or filler |
| Installation Speed | Fast for repairs | More preparation and cooling time |
| Installed Profile | Higher bulk | Low profile, neat runs |
| Serviceability | Limited reuse depending on ferrule condition | Not reusable; permanent bond |
| Dynamic Stress Performance | Moderate; may loosen | High resistance with rigid bonded joints |
| Typical Applications | Plumbing, gas lines, quick HVAC fittings, service tees | Permanent plumbing runs, aesthetic installations |
Choose the joint style according to pressure, temperature, service access, and material compatibility. Compression Tee Fittings and T Compression Fittings can be useful in plumbing, gas-line work, HVAC fittings, and instrumentation when a serviceable or flame-free connection is needed.
Step-By-Step Compression Fitting Installation Guide
Effective installation begins with thorough preparation and a well-ordered sequence. Every step matters because poor preparation can cause leaks or damage. This section explains how to install compression fittings on copper tubing and when to source compatible parts or tools from Installation Parts Supply.
Proper preparation of copper tubing is essential. Use a tubing cutter to cut it squarely, then remove any burrs with a reamer. Inspect the tube end for any nicks or deformations. Before assembly, clean the tube and inspect the fitting body, nut, and ferrule for damage.
Begin by sliding the nut onto the pipe, ensuring the threads face the end. Then place the ferrule or olive onto the pipe. Push the pipe fully into the fitting body and make sure the ferrule is positioned correctly. Hand-tighten the nut first, align the assembly, and then use a wrench for final tightening.
Correct tightening is essential to a secure seal. Use two wrenches to secure the fitting body while tightening the nut. Follow the manufacturer’s instructions for rotation-based turns, not just torque readings. Avoid over-tightening, as it can flatten the ferrule and lead to leaks.
After disassembly, replacement ferrules are often needed. Once an olive or ferrule has been compressed, it should not be reused. If a ferrule is stuck, use a ferrule puller or carefully cut and remove it to avoid damaging the fitting body.
Plastic tubing usually needs an insert to maintain shape under compression. Copper tubing generally does not require inserts. After reassembly, slowly open the supply and check for leaks. If needed, tighten in small measured increments. For compatible parts, sizing details, and specifications, consult Installation Parts Supply.
Ferrule Design Details That Affect Compression Performance
The choice of ferrule directly influences a compression joint’s performance under pressure and over time. Whether opting for a single-piece or two-piece ferrule, each has its advantages and considerations. The design of the ferrule must align with the tubing and fitting body to ensure a secure and lasting seal.
Common ferrule shapes and material choices
Brass and stainless steel are the most common materials for ferrules. For chemical resistance, high temperature, or specialty service, graphite or specialty alloy ferrules may be used. A single-piece ferrule is easier to install and works well with softer copper tubing. A two-piece ferrule adds a rear ferrule that helps control rotation and reduce galling, especially in stainless systems.
Asymmetrical versus symmetrical ferrules
An asymmetrical ferrule must be installed in the correct direction to support consistent performance. It is often preferred for high-reliability applications. In contrast, a symmetrical ferrule can be installed in either direction, making it quicker to assemble. However, it may perform less reliably on hard plastics where OD tolerance variations can contribute to leaks.
Seal geometry: line contact vs surface contact
The design of the ferrule controls whether it uses a line contact or surface contact seal. Line contact seals are more durable to creep and vibration. Over-tightening can, though, convert a line contact seal into a surface contact, increasing the risk of leakage over time.
Tubing factors and material behavior
Metal tubing must have smooth walls and precise cuts to ensure proper ferrule seating. Copper tubing, even when stored in coils, can have slight irregularities that affect the seal. Soft plastics and PTFE exhibit cold flow and creep under compression, leading to a loss of seal integrity over time.
Soft tubing and PTFE cold-flow mitigations
To counteract PTFE cold flow, consider using tubing inserts or redundant internal O-rings. Hardened ferrules can also help distribute the load. In high-pressure or high-purity environments, select materials and lubricants that minimize galling and residue. Ensure that the ferrule material matches the tubing and application requirements to maintain a reliable seal throughout its service life.
Troubleshooting Compression Fittings And Avoiding Common Mistakes
When diagnosing compression fitting problems, begin by checking nut tightness, tube alignment, and ferrule condition. Small leaks often stem from an under-tightened nut or an improperly seated ferrule. To avoid damaging the tubing, stabilize the fitting body with one wrench while tightening the nut with another.
Problems from overtightening can cause pipe deformation, crushed ferrules, and persistent leaks. Over-tightening can damage the copper tubing or flatten the ferrule, leading to a poor seal. When tubing is flattened or a ferrule is gouged, cut back the tube and install a new ferrule and nut.
Under-tightening results in a gap, allowing slow leaks. For small weeps, tighten in small increments with a wrench until the leak stops. Avoid over-tightening by using incremental tightening for a reliable seal.
Misalignment and twisting stop proper ferrule compression. Ensure the tubing enters the fitting straight and fully. If the ferrule is misaligned, it can jam or become difficult to remove. To remove a stuck ferrule, use a ferrule puller or cut it off and replace it, being careful not to damage the tubing.
Identifying and fixing leaks involves inspecting the ferrule seating and part condition. Any damaged ferrule, nut, or fitting body should be replaced. For a quick fix, incremental tightening can stop small leaks until a proper repair can be scheduled. If the leak persists, consider re-cutting the tube end and reassembling the fitting.
Dealing with corrosion and galling requires both repair and prevention. Corrosion can pit the sealing surfaces, leading to recurring leaks. Galling can seize the nut and body, making disassembly difficult. Apply penetrating oil to stuck nuts and allow time for soaking. If threads, tapers, or sealing faces are damaged, replace the affected parts.
Choosing the right materials can reduce corrosion and galling. Avoid pairing carbon steel with copper to prevent galvanic reactions. Choose ferrules and fittings suited to the system’s chemistry, pressure, and temperature. In cleanroom or high-purity service, volatile cleaning agents may increase galling risk, so use anti-galling ferrules and approved compatible lubricants where permitted.
Stuck nut recovery usually starts with penetrating oil and careful patience. If the nut won’t budge, cutting and replacing the nut and ferrule may be faster than prolonged attempts. Use proper tools to avoid damaging the fitting body.
When a compression joint is not the right choice, other joining methods should be considered. Systems exposed to constant vibration, long-term dynamic stress, or strict low-profile needs may benefit from soldering, mechanical crimp systems, flare fittings, or welded joints. When planning repairs or new installs, compare compression and soldering for permanence, profile, accessibility, and code requirements.
| Issue | Common Cause | First Action | Permanent Solution |
|---|---|---|---|
| Minor seepage | Loose nut or poorly seated ferrule | Apply small turns while holding the body steady | Re-cut tubing and rebuild with new compression parts |
| Persistent leak after tightening | Ferrule or tube damaged by excessive force | Cut tube back and reassemble with new parts | Follow turn-count guidance and avoid excess force |
| Stuck ferrule or nut | Compression seat or galling | Soak, pull, or carefully cut away the part | Install new parts and select anti-galling materials |
| Corrosion or pitted seal | Wrong material choice or chemical attack | Remove and replace damaged components | Use compatible metals and follow applicable codes |
| Leak under vibration | Dynamic stress exceeds fitting suitability | Clamp, secure, and inspect the affected run | Choose soldered, welded, crimped, or flared alternatives |
Conclusion
Copper Tubing Compression Fittings conclusion: compression fittings provide a versatile, flame-free solution for copper tubing in various fields. They perform best when materials are compatible and proper installation methods are followed. Brass, copper, stainless steel, and certain plastics are compatible, provided they avoid galvanic corrosion and thermal mismatch.
Installation Parts Supply guidance emphasizes replacing ferrules during reassembly and tightening fittings according to manufacturer specifications. That practice helps maintain reliable sealing.
Choose compression fittings for simple repairs, confined spaces, and removable joints. They have limitations compared to soldered connections. Long-term performance relies on ferrule design, tubing quality, and correct assembly sequence.
In high-pressure or high-vibration service, choose ferrules and fittings rated for those conditions. When compression fittings are not suitable, consider soldering, brazing, crimping, flaring, or welding.
This summary stresses the importance of routine checks and careful installation. Ensure cuts are square and deburred. Use the sliding nut and ferrule correctly, add an insert where required, hand-tighten first, and finish with measured wrench turns.
Use manufacturer torque or turn-count guidance to avoid leaks, ferrule damage, and tube distortion. For parts and compatible ferrules, consult suppliers. They should offer 1/4 Compression T Fitting, 1/2 Compression T Fitting, and brass tee options to match your project.
